Slight update to the slider

I’ve made some updates to the motor and slider gantry part. I’ve added a geared stepper motor (gear ratio: 5.18:1) with a 36 Tooth pully, though a 20 tooth pulley is also available, Black contoller box, new limit switches, new connector for the motor to the box and lifted the camera ball head on a section of 40mmx20mm aluminium rectangular tube so as to deal with the taller motor. New parts listed below. The geared motor works better than the direct drive and provides some resistance to the moptor free sliding when the is no power applied. I’ve also upgraded some of the M5 screws to stainless to minimise rust and corrosion.

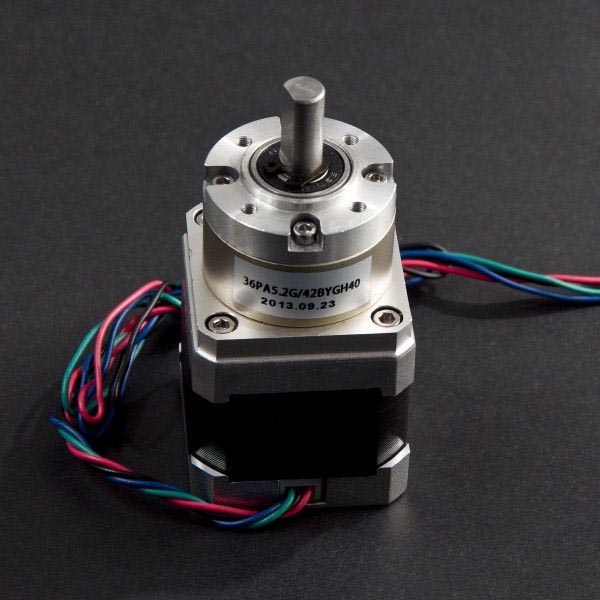

Bipolar Stepper Motor with Planet Gear Box (18kg.cm)

https://core-electronics.com.au/bipolar-stepper-motor-with-planet-gear-box-18kg-cm.html

Aluminum GT2 Timing Pulley – 6mm Belt – 36 Tooth – 8mm Bore

https://core-electronics.com.au/aluminum-gt2-timing-pulley-6mm-belt-36-tooth-8mm-bore.html

Micro Limit Switch Kit with Mounting Plate

https://www.makerstore.com.au/product/elec-micro-kit

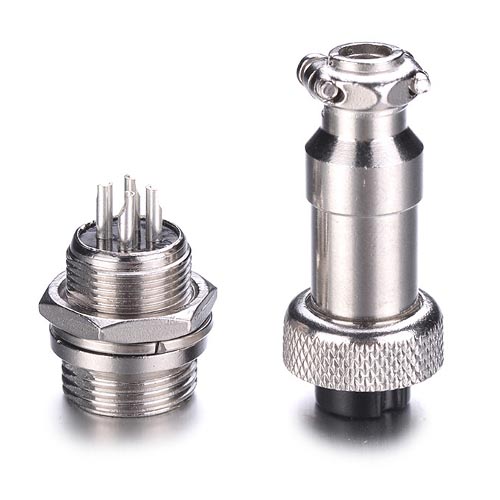

GX12 4pin Male And Female Connector

https://www.makerstore.com.au/product/gx12-4pin-male-and-female-connector/

Zulkit Waterproof Plastic Project Box ABS IP65 Electronic Junction Box Enclosure Black 3.94 x 2.68 x 1.97 inch (100X68X50mm) (Pack of 2)

https://www.amazon.com.au/gp/product/B07RTYYHK7/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

The mounting screws for the geared motor are offset slightly differently so I had to modify the stepper mounting plate to accomodate the screws.
New micro switch seem to be a little more robust and come with mounting hardware..
The GX12 4pin Male And Female Connector locks in more securely with a screw lock to hold it in place. Also I think the black case looks a little more professional.
